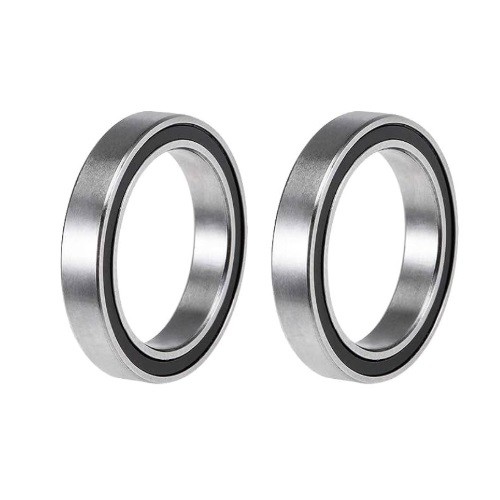

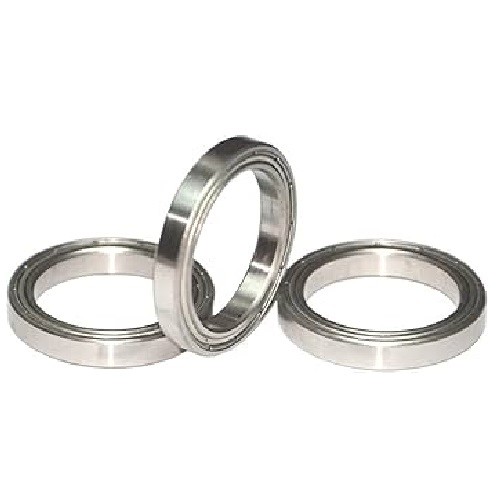

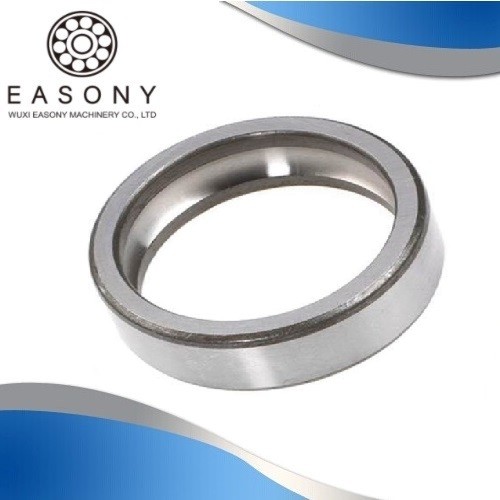

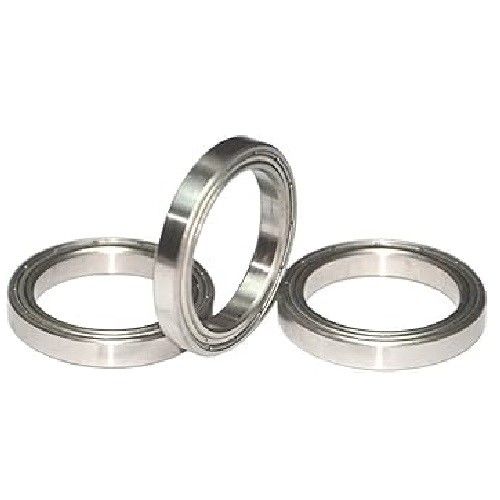

Wall Ball Bearing Sleeve Outer Ball Bearing Rings, also known as bearing sleeves, serve as a protective covering for the outer race of ball bearings. These sleeves play a crucial role in maintaining the integrity and prolonging the lifespan of the bearing by preventing contaminants such as dust, dirt, or debris from entering the bearing assembly. Additionally, they can help distribute loads more evenly, reduce friction, and provide support to the bearing during installation and operation. Wall Ball Bearing Sleeve Outer Ball Bearing Rings are commonly used in various applications including automotive, industrial, and construction machinery.
Why the Outer Ring for Bearing from us:
-
Many years of know-how producing outer rings using cold rolling process
-
Using the cold rolling process we save raw material up to 20% if compared to standard process
-
Fiber flow are aligned to balls raceways due to cold rolling process
-
Using the cold rolling process, the stock material is lower than standard process
-
Parts are through hardening and ready for grinding
Application:Used in petroleum, chemical industry, aerospace, paper, automobile, packaging machinery,
decoration, railings and other engineering, hardware processing, ships, power plants and other industries.
| Subjection : Specificationsfor Raw Material of Sleeves (High Carbon - Chromium Bearing Steel Tubes) |
| 1. Specifications for Finish Tubes |
| Material : GCR15/SAE 52100/100CR6/SUJ2 or Its Equivalent |
| Reference: GB/T 18254; YB-T 4146; SKFD33; |
| S13000; JISG4805; ASTMA295; |
| A. Chemical Composition |
| |
C |
Si |
Mn |
S |
P |
Cr |
Al |
O2 |
H2 |
N2 |
Ti (ppm) |
| |
|
|
|
|
|
|
|
(ppm) |
(ppm) |
(ppm) |
|
| MIN. |
0.95 |
0.15 |
- |
- |
- |
1.3 |
- |
- |
|
|
- |
| MAX. |
1.1 |
0.35 |
0.5 |
0.025 |
0.025 |
1.6 |
0.05 |
15 |
1 |
100 |
30 |
| B.Microstructure |
|
|
|
|
|
|
|
|
|
|
| Spherodised Annealed, consist of uniformly distributed spheroidalcarbides in a matrix of ferrite and shall be free from excessive carbidesegregation. |
| C. Macro Etch Test |
|
|
|
|
|
|
|
|
|
|
| Billet sample taken in accordance with A295 shall be macro-etched and examined. |
|
|
|
|
|
| It should be free from pipe, porosity and injurious defects. |
|
|
|
|
|
|
|
| D. Non Metallic Inclusions : |
|
|
|
|
|
|
|
|
|
| According toA.S.T.M A 295 for through hardening bearing steel the inclusion rating shall beperformed using the recommended ASTM - E 45 Method -D and the rating shall notexceed the limits specified below: |
| |
A |
|
B |
C |
D |
| Thin |
Heavy |
Thin |
Heavy |
Thin |
Heavy |
Thin |
Heavy |
| 2.5 |
1.5 |
2 |
1 |
0.5 |
0.5 |
1 |
1 |
| E. Decarb Layer: |
|
|
|
|
|
|
|
|
|
|
| Surfacedefects inclusive of decarburized depth not to exceed 0.25mm. |
|
|
|
|
|
|
| Total decarburized depth is defined as distancefrom the surface of decarburized layer to the position where the difference inchemical or physical properties between the decarburized layer & the |
| corematerial is no longer determinable. |
|
|
|
|
|
|
|
|
| F. Surface Quality : |
|
|
|
|
|
|
|
|
|
|
| Noscratch marks & cracks. The tubes shall be well finished and the outside& inside surfaces shall be free from injurious defects for practicaluse.All tubes shall be inspected for ultrasonic tests as per ASTM D213. |
| G. Manufacturing process : |
|
|
|
|
|
|
|
|
|
| Cold Drawn or Cold Pilgered. |
|
|
|
|
|
|
|
|
|
| H. Product Tolerance |
|
|
|
|
| Sr.No. |
OD(mm) |
Tube wall thickness |
| (mm) |
| 1 |
0 |
-0.0/+5% of WT |
| |
|
|
|
|
|
|
|
|
| I. Other specifications |
| Parameter |
|
|
Specification |
| Hardness |
|
|
220 BHN max |
| Magnetism |
|
|
Material will be free from magnetism. |
| Straightness |
1 mm per Meter on any running length |
| Length |
|
|
5.8m max. |
| Inspection |
|
|
All tubes will be 100% inspected by PMI test or spark test to ensure to no mix-up of material. |
| Marking |
|
|
Manufacturer’s mark & name, Grade, size, Heat Number, Year |
| |
|
|
& month of manufacture. |
| Coating |
|
|
Rust preventive oil on outside & inside surfaces. |
Production Detection:
1. Complete testing facilities
2. Perfect measurement methods
3. Perfect production detection methods
4. Strong QC team,conduct comprehensive quality control
FAQ
Q1:who are we?
A:We are based in WUXI, China, start from 2016,sell to Asia(60.00%),Western Europe(14.00%),South
America(6.00%).
Q2. how can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3.what can you buy from us?
A:Copper,Aluminum,Mould steel, Seamless carbon steel,Precision steel pipe,The steel plate,Alloy steel
Titanium,Custom machine parts.
Q4.why should you buy from us not from other suppliers?
A:EASONY has 8 years of production experience. With advanced precision production equipment and modern large warehouses, has a stockpile of 200,000 tons of goods, has a number of long-term stable cooperative customers.
Q5.what services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW；Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,
HKD,GBP,CNY,CHF.
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;Language Spoken:English,Chinese.
Q6.Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q7.How can we get your price ?
A:We need below information to quote for you:
1)Product Name
2)Standard
3)Material Grade (Chemical Composition)
4)Dimension
5)Quantity
6)The Drawing for Special Parts
