GALVANIZED /UN-GALVANIZED HIGH CARBON SPRING WIRE
Product:BSW1004 Carbon/Alloy steel pipe
Spring steel wire is a kind of steel wire used to make spring or wire forme . According to the different uses of the spring, there are various types of spring steel wires , such as spring steel wires for mattress springs ( mattress steel wires) with lower requirements, spring steel wires for shock absorbers, and spring steel wire for suspension springs. spring wires for engine valves and spring wires for camera shutters, etc. Although there is no unified standard classification name, the quality requirements of these wires are different. Spring steel wire can also be classified according to the manufacturing process, such as cold-drawn spring steel wire (without heat treatment before drawing), lead patenting spring steel wire, galvanized spring steel wire, oil-tempered spring steel wire, etc.
Standard:JIS G 3510
Material:High Carbon Steel (82B,T9A)
specification:
Outside diameter:0.2-12.0mm
Technology:Cold-drawn,Cold rolling,Hot rolling
Length:Available on request
Delivery time:Generally 7-15 days, depending on customer demand
Surface treatment:Polished, bright, pickling, etc
Application:Spring or Rolling
Product Specification
| Piano wire | Diameter | Piano wire |
| SWP-A | SWP-B | SWP-A | SWP-B |
| MM | MPa | MM | MPa |
| 0.2 | 2600-2840 | 2840-3090 | 2 | 1810-2010 | 2010-2210 |
| 0.23 | 2550-2790 | 2790-3040 | 2.3 | 1770-1960 | 1960-2160 |
| 0.26 | 2500-2750 | 2750-2990 | 2.6 | 1770-1960 | 1960-2160 |
| 0.29 | 2450-2700 | 2700-2940 | 2.7 | 1720-1910 | 1910-2110 |
| 0.32 | 2400-2650 | 2650-2890 | 2.9 | 1720-1910 | 1910-2110 |
| 0.35 | 2400-2650 | 2650-2890 | 3.2 | 1670-1860 | 1860-2060 |
| 0.4 | 2350-2600 | 2600-2840 | 3.5 | 1670-1810 | 1810-1960 |
| 0.45 | 2300-2550 | 2550-2790 | 4 | 1670-1810 | 1810-1960 |
| 0.5 | 2300-2550 | 2550-2790 | 4.5 | 1620-1770 | 1770-1910 |
| 0.55 | 2260-2500 | 2500-2750 | 5 | 1620-1770 | 1770-1910 |
| 0.6 | 2210-2450 | 2450-2700 | 5.5 | 1570-1710 | 1710-1860 |
| 0.65 | 2210-2450 | 2400-2650 | 6 | 1520-1670 | 1670-1810 |
| 0.7 | 2160-2400 | 2350-1600 | 6.5 | 1520-1670 | 1670-1810 |
| 0.8 | 2110-2350 | 2300-2500 | 7 | 1470-1620 | 1620-1770 |
| 0.9 | 2110-2300 | 2260-2450 | 8 | 1470-1620 | - |
| 1 | 2060-2260 | 2210-2400 | 9 | 1420-1570 | - |
| 1.2 | 2010-2210 | 2160-2350 | 10 | 1420-1570 | - |
| 1.4 | 1960-2160 | 2110-2300 | | | |
| 1.6 | 1910-2110 | 2060-2260 | | | |
| 1.8 | 1860-2060 | | | | |

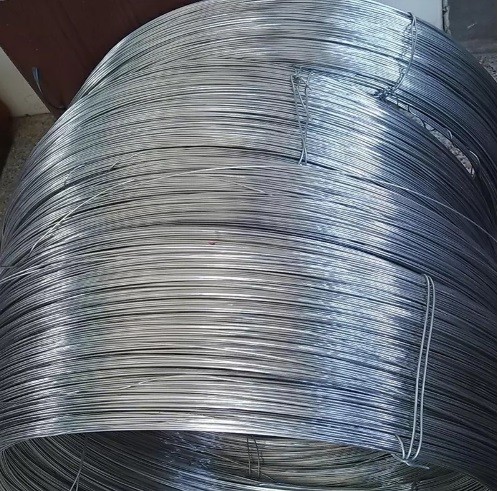

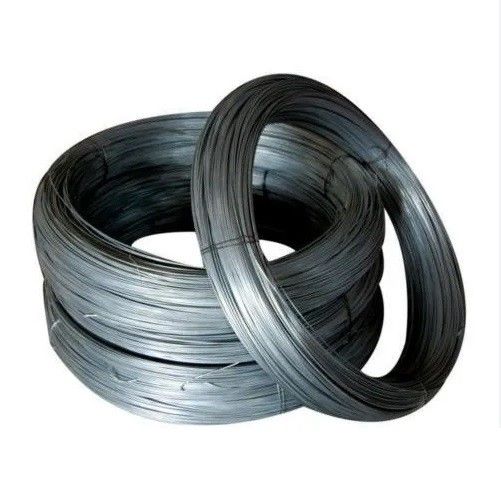

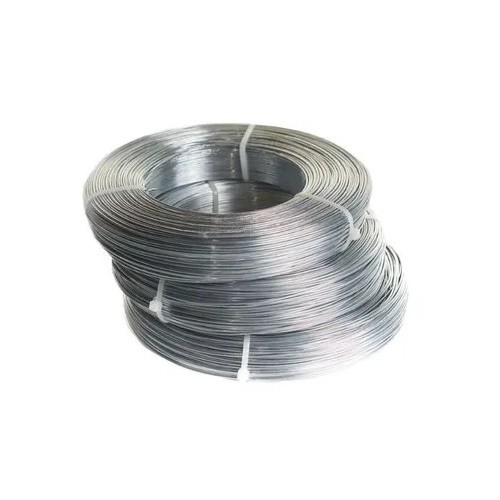

Product Image
Production line:
FAQ
Q1:who are we?
A:We are based in WUXI, China, start from 2016,sell to Asia(60.00%),Western Europe(14.00%),South
America(6.00%).
Q2. how can we guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment.
Q3.what can you buy from us?
A:Copper,Aluminum,Mould steel, Seamless carbon steel,Precision steel pipe,The steel plate,Alloy steel
Titanium,Custom machine parts.
Q4.why should you buy from us not from other suppliers?
A:WUXI EASONY has 8 years of production experience. With advanced precision
production equipment and modern large warehouses, has a stockpile of 200,000 tons of goods, has a number
of long-term stable cooperative customers.
Q5.what services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW；Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,
HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;Language Spoken:English,Chinese.
Q6.Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q7.How can we get your price ?
A:We need below information to quote for you:
1)Product Name
2)Standard
3)Material Grade (Chemical Composition)
4)Dimension
5)Quantity
6)The Drawing for Special Parts
